Tree Jack

Tree Jack

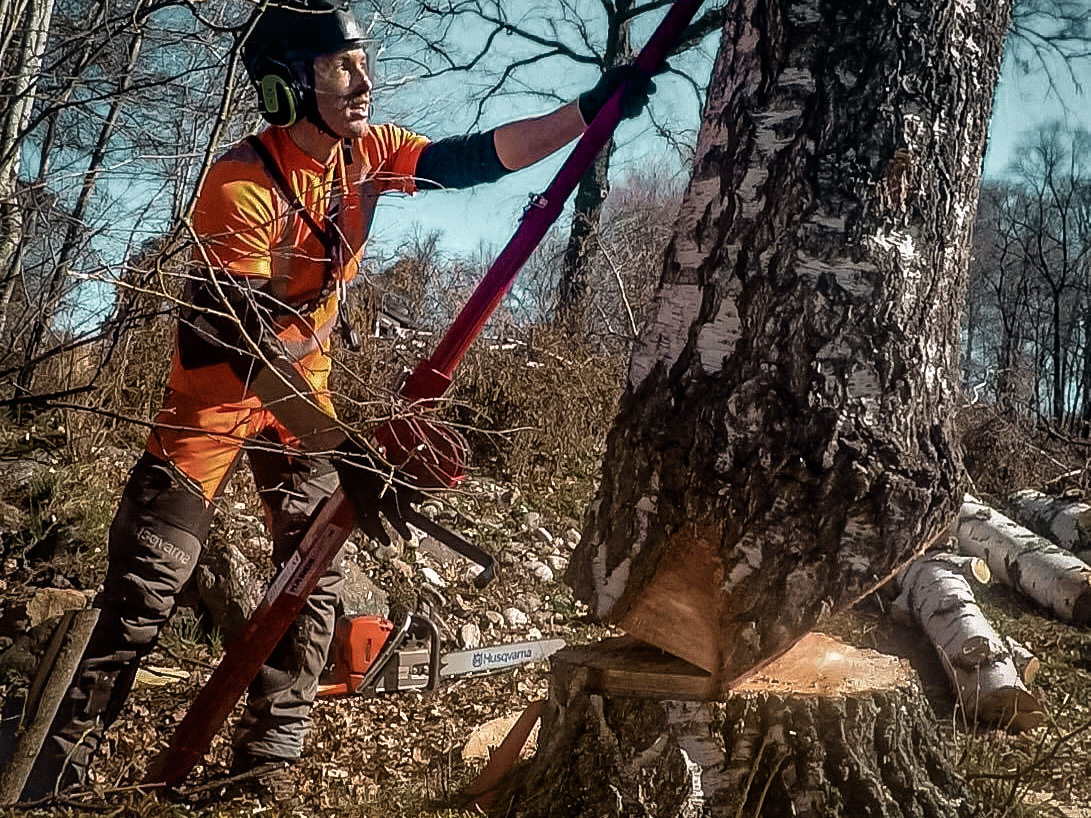

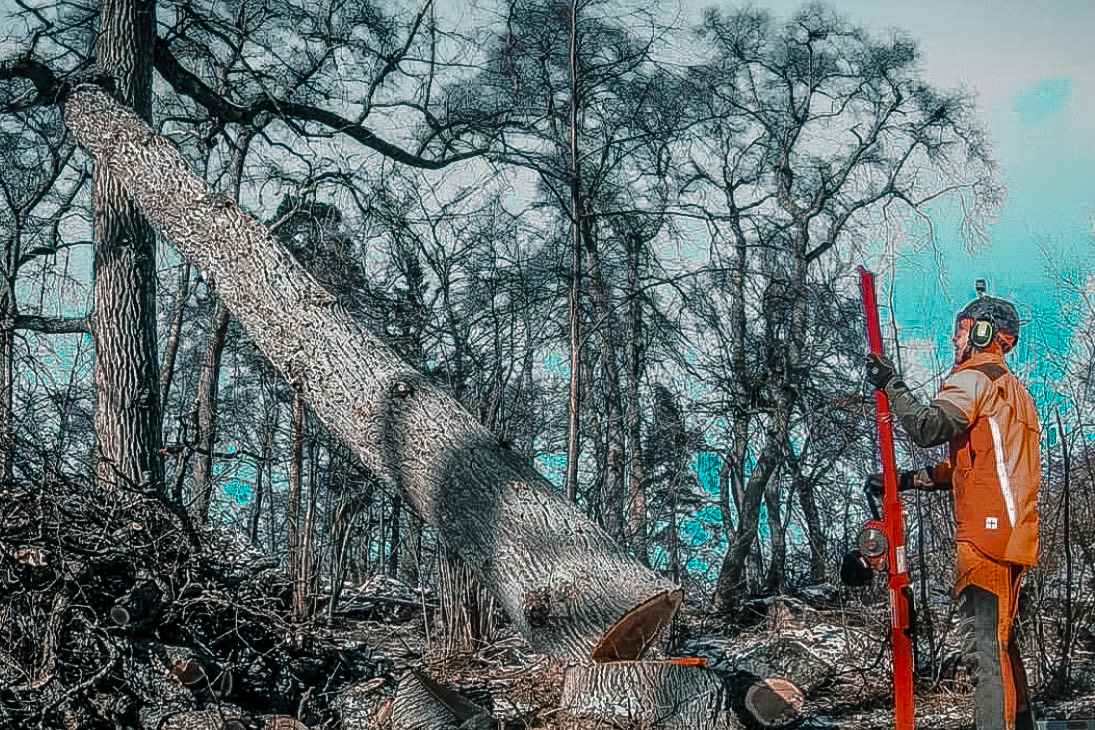

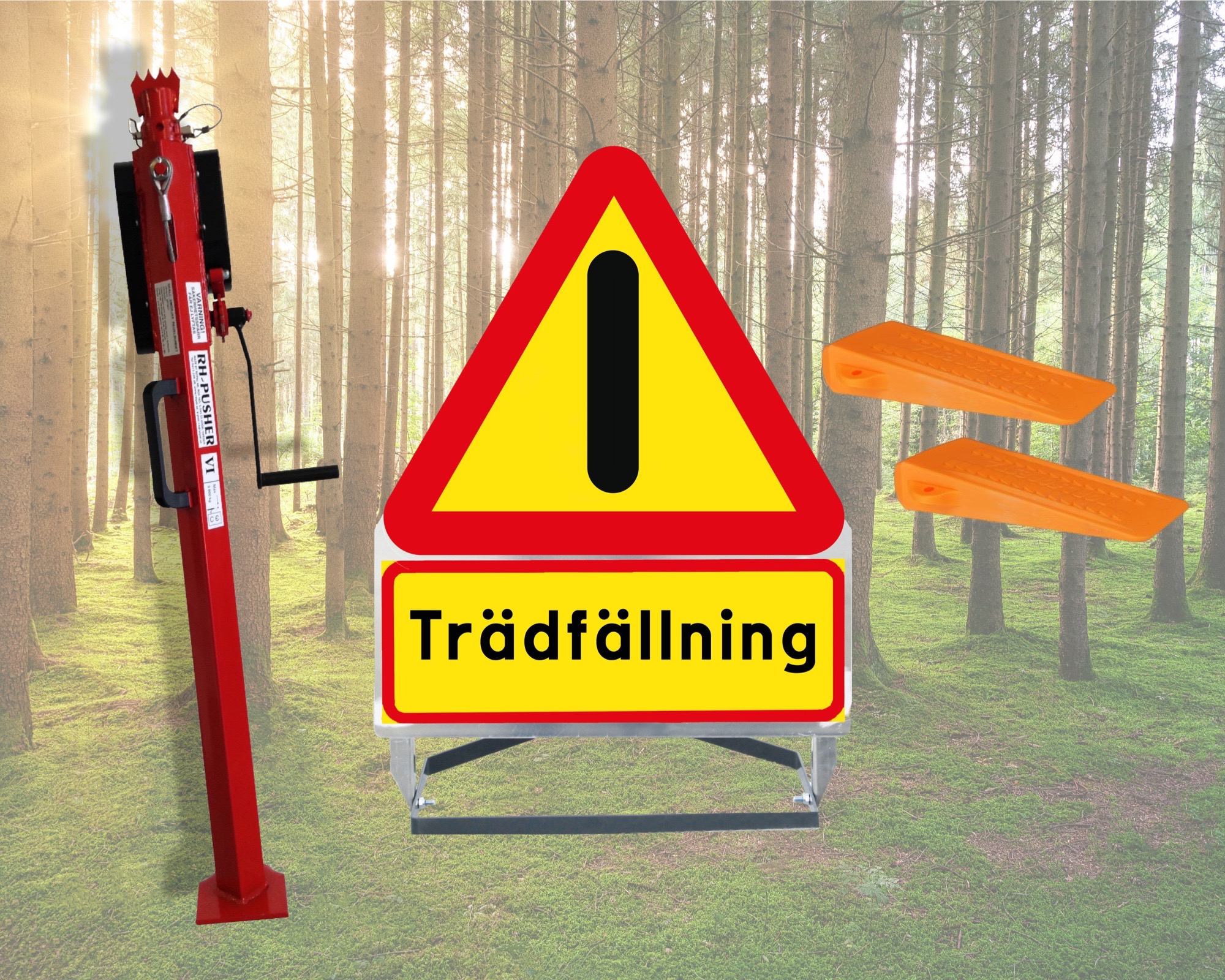

  • The RH-PUSHER is an indispensable tool for safe tree-cutting along roads, power lines, when close to houses. Also when it comes to cut down tree into a certain direction.
  • The RH-PUSHER is equipped with safety crank. Recommended crank power is 75 kp.
  • The RH-PUSHER is equipped with a folding handle

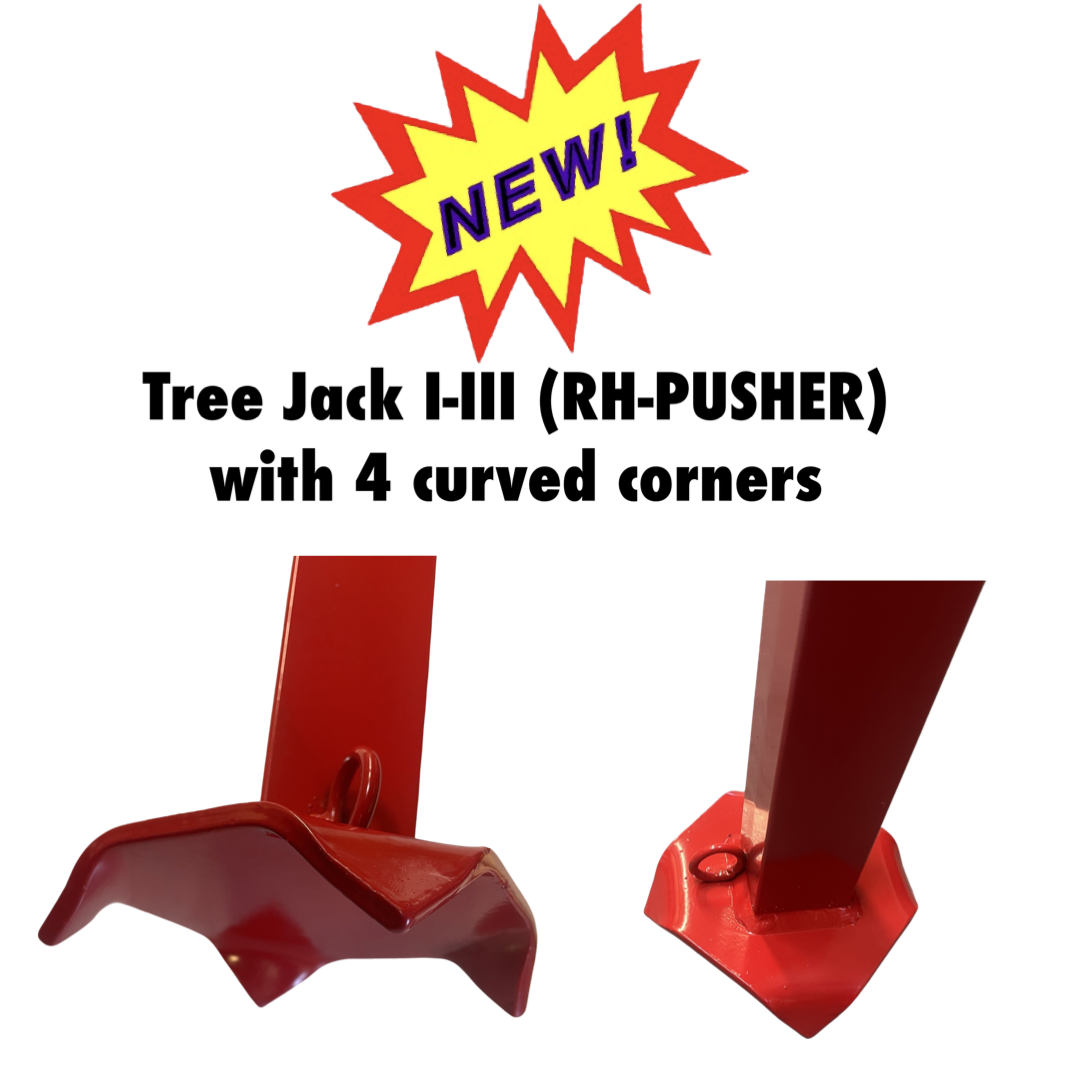

  • The RH-PUSHER is equipped with a special foot with the corners bended in order to be able to put it on big piece of wood, a branch etc when soft ground.

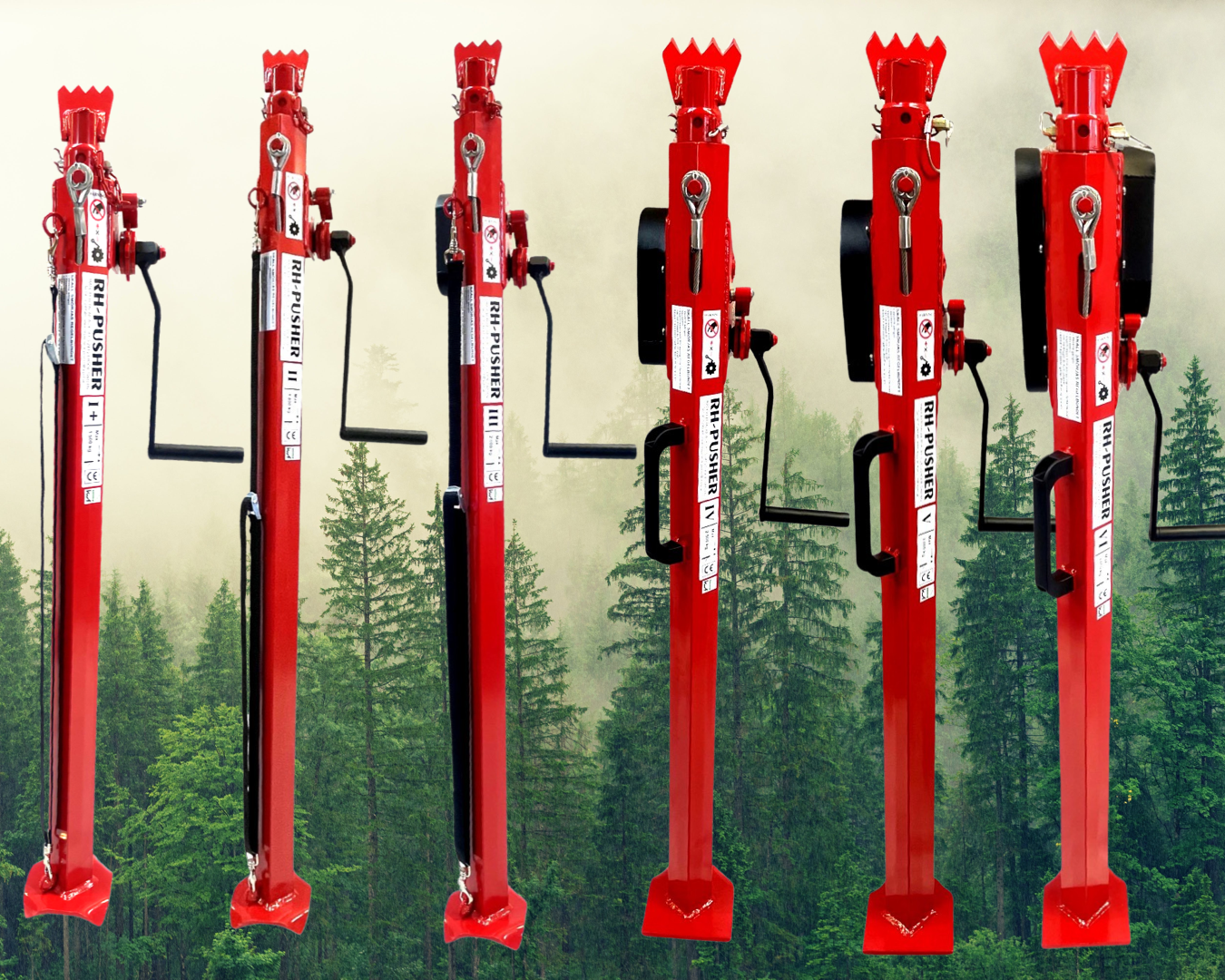

  • The RH-PUSHER is equipped with a belt (I, II, III) so it can be carried on the shoulder. RH-PUSHER IV, V and VI are equipped with a handle instead of belt.
  • The department of safety in Sweden approves RH-PUSHER.
Tree Jack brochure
Manual

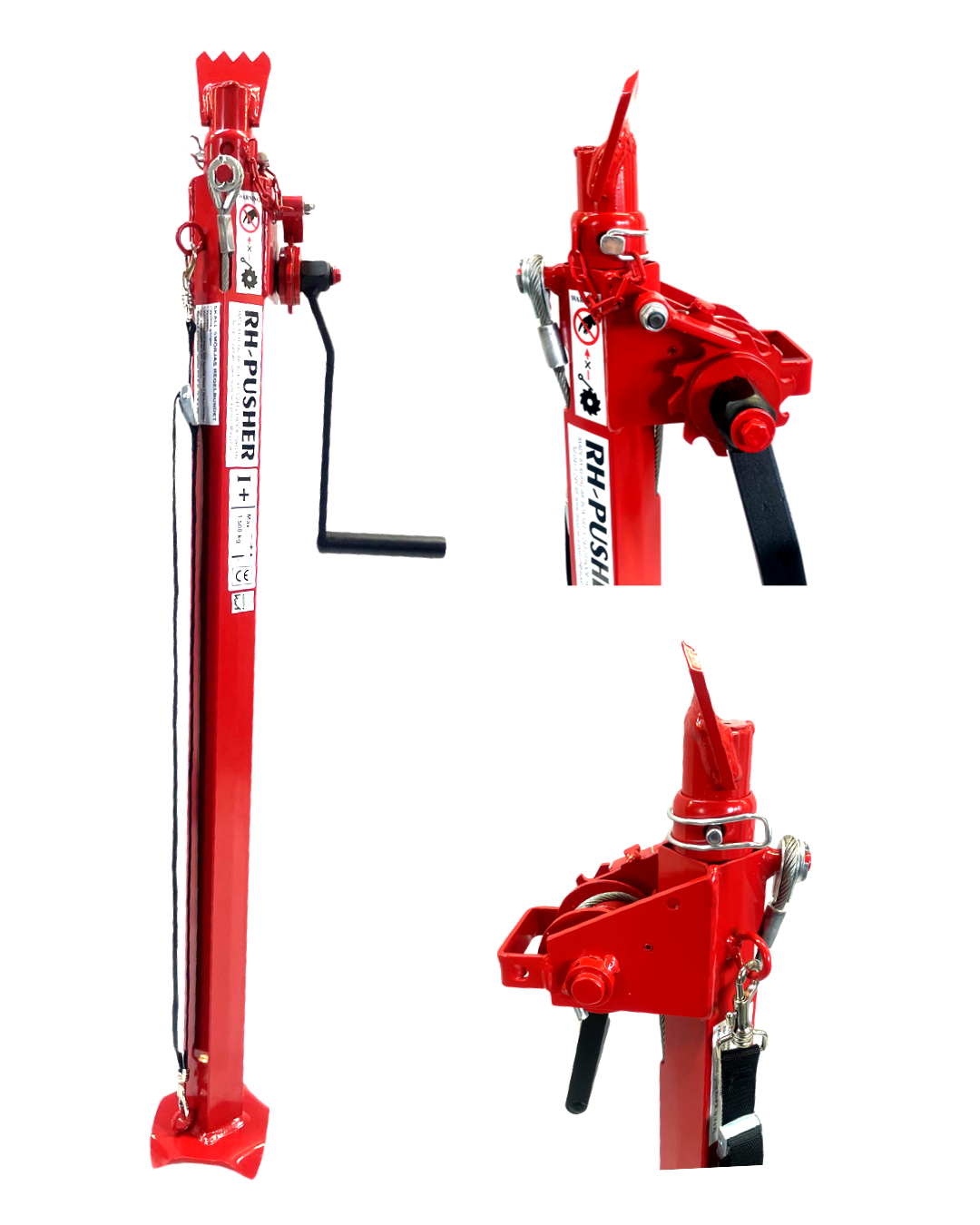

RH-Pusher I

Weight:12 kg
Shortest length: 115 cm
(without top part): 105 cm
Top part in: 115-195 cm
Top part out: 175-255 cm
Ratio/Lift capacity: 20/1500 kg

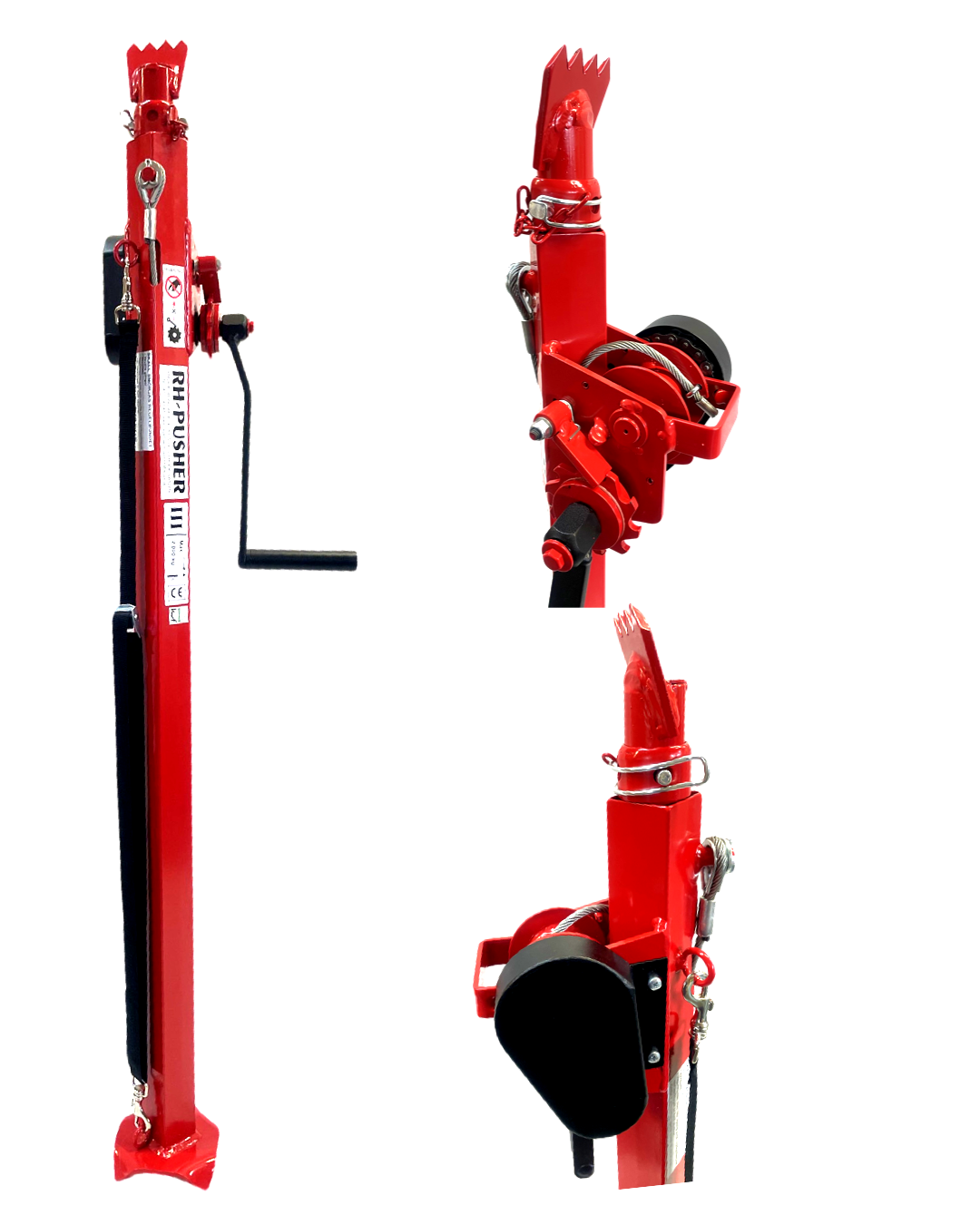

RH-Pusher III

Weight:15,5 kg
Shortest length: 135 cm
(without top part): 120 cm
Top part in: 135-220 cm
Top part out: 195-280 cm
Ratio/Lift capacity: 28/2100 kg

RH-Pusher II

Weight:13,5 kg
Shortest length: 135 cm
(without top part): 120 cm
Top part in: 135-220 cm
Top part out: 195-280 cm
Ratio/Lift capacity: 23/1800 kg

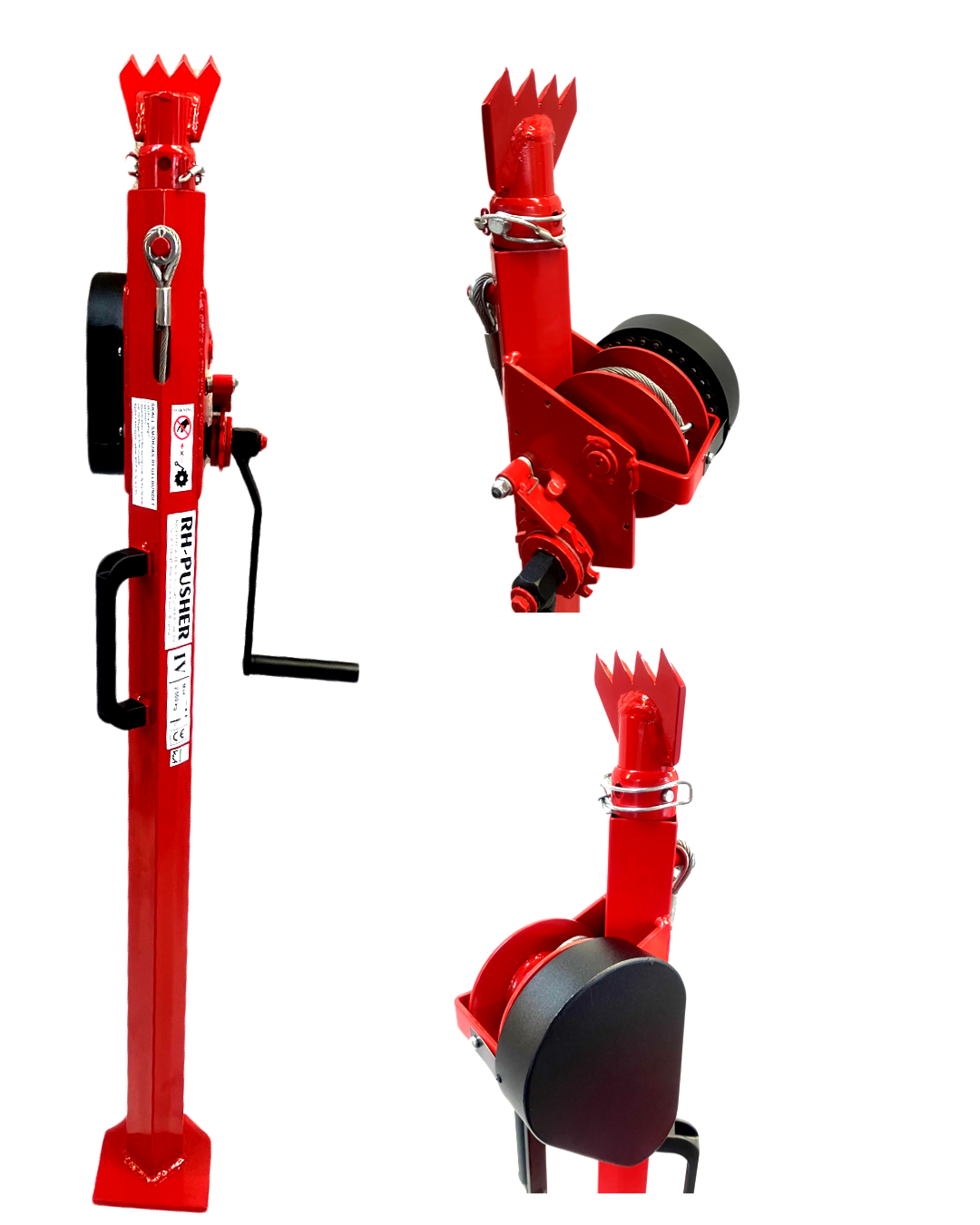

RH-Pusher IV

Weight:20 kg
Shortest length: 135 cm
(without top part): 120 cm
Top part in: 135-220 cm
Top part out: 185-270 cm
Ratio/Lift capacity: 34/2550 kg

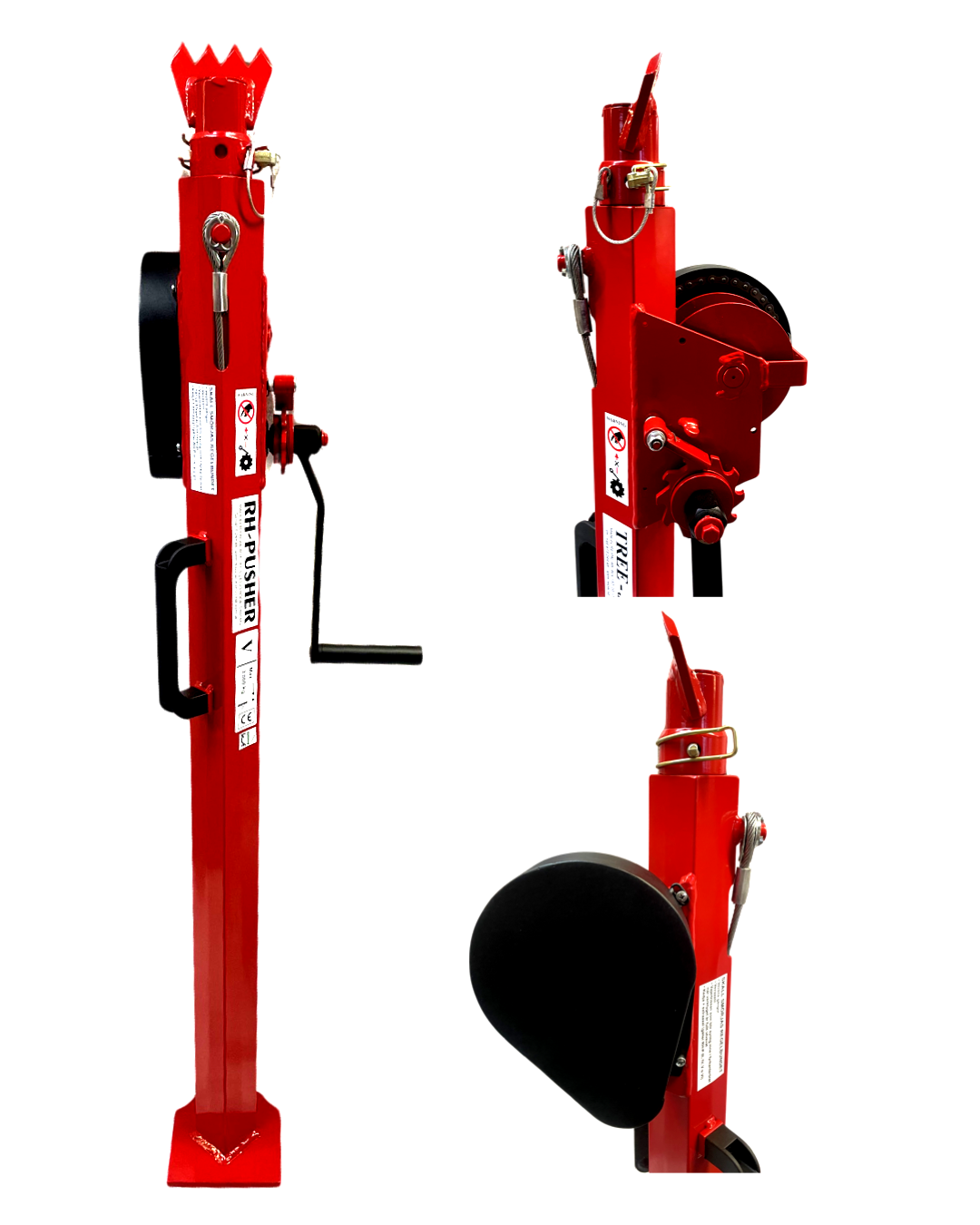

RH-Pusher V

Weight:21 kg
Shortest length: 135 cm
(without top part): 120 cm
Top part in: 135-220 cm
Top part out: 185-270 cm
Ratio/Lift capacity: 40/3000 kg

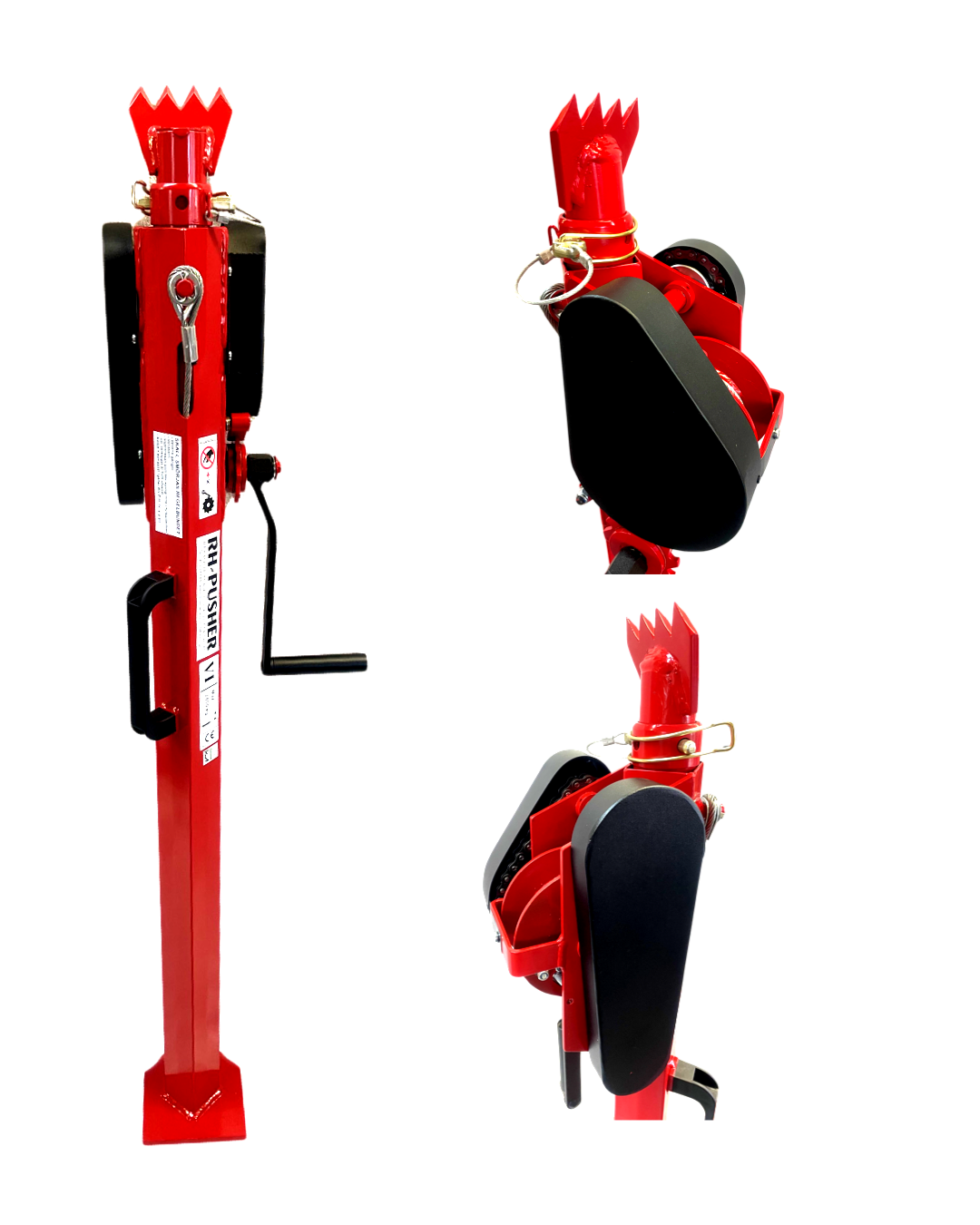

RH-Pusher VI

Weight:24 kg
Shortest length: 135 cm
(without top part): 120 cm
Top part in: 135-220 cm
Top part out: 185-270 cm
Ratio/Lift capacity: 50/3600 kg
